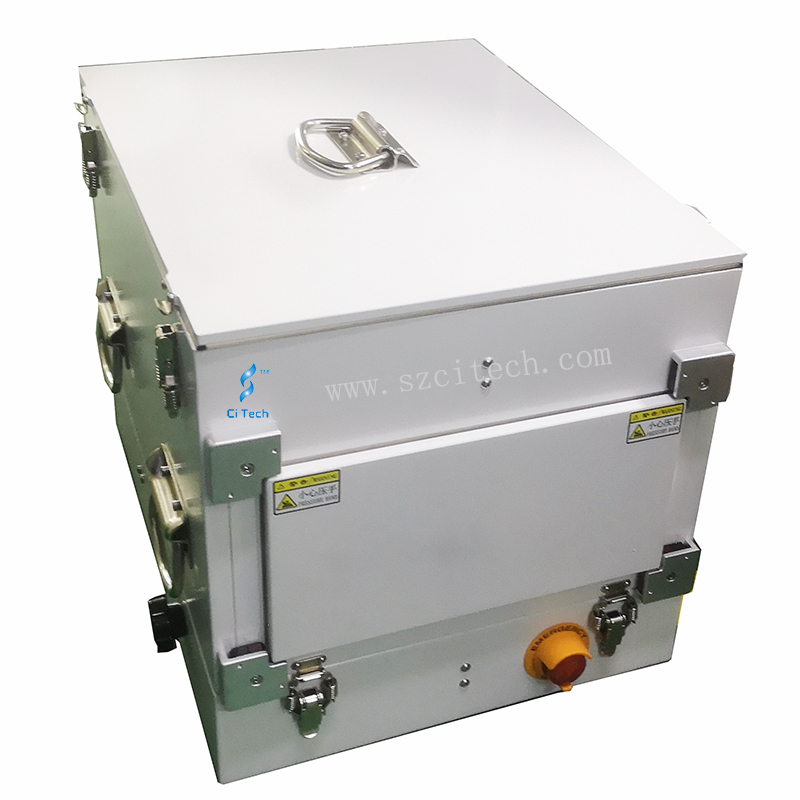

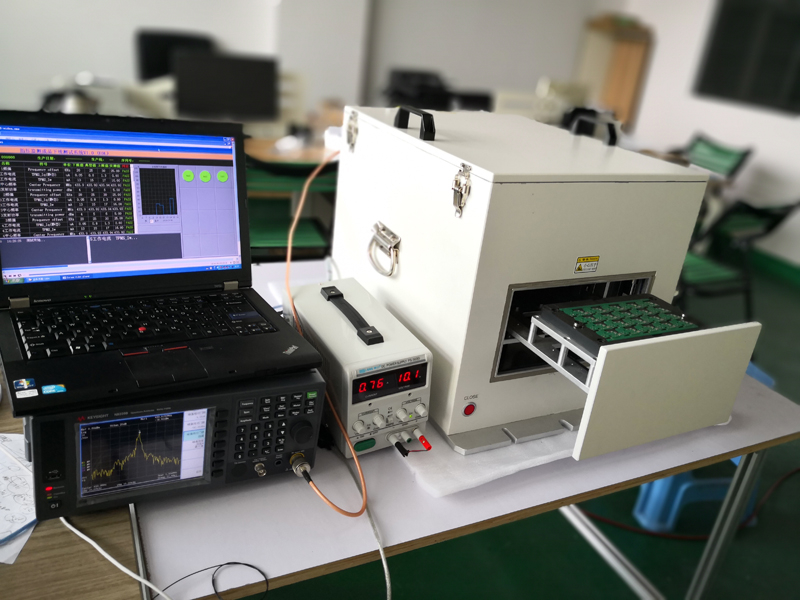

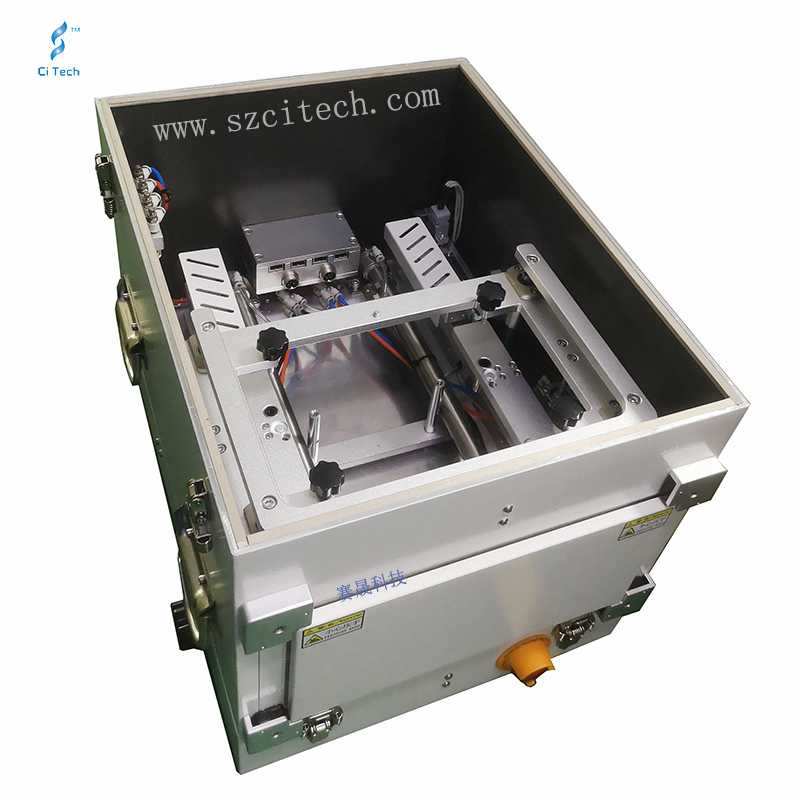

ST-SA007B RF Shielding Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D, service QC and manufacturing
Comprehensive wireless communications testing solutions, in the service of high-end technology, such as DAB/DMB, GSM, GPS, LTE, WIFI, WI-MAX, CDMA, CDMA2000, WCDMA, TD-SCDMA, 3G/4G mobile, WLAN, Bluetooth, PDA,Reflex, WIFI phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
+86 18038170771Features
u Reliable high RF shielding up to 12GHz
u Pneumatic control/Automatic
u Easily customize to meet various test needs
u Shock absorbance on lid
u Easy to maintain design, with safety protection

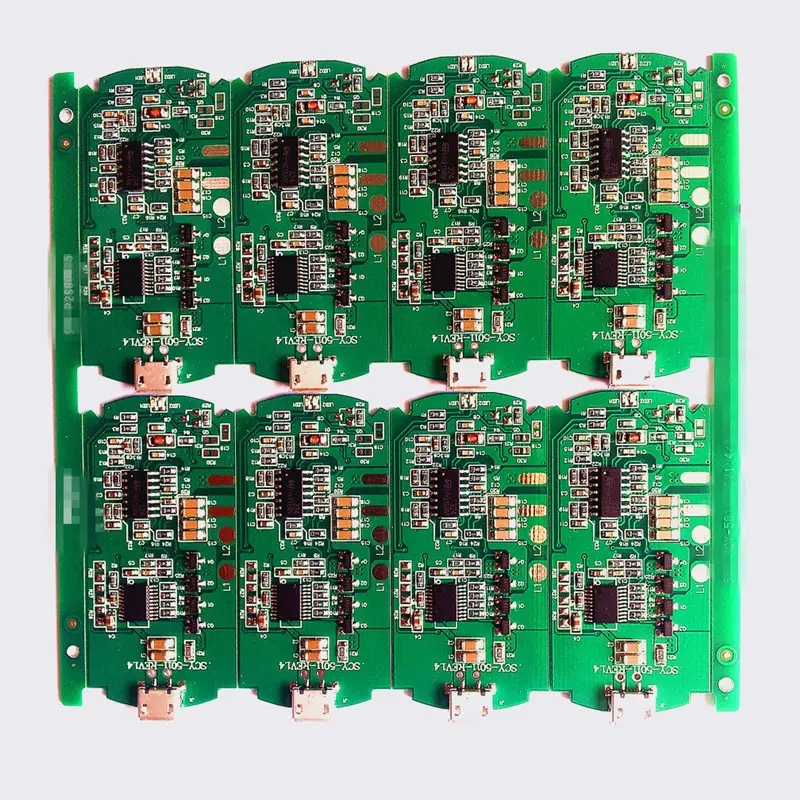

u SMT motherboard test power value is stable,
ensure reliable repeat test, good consistency
Specification
Outer Dimension | (L)460*(W)355*(H)354 MM |
Shielding Isolation | 800MHz~8.5GHz>70dB |
Shielding Material | Microwave Absorber |
Material | Aluminum+ metal plate |
Surface Color | white ( According to the customer request custom color) |
I/O Connectors | SMA*4,RS232*1, USB*2（According to the customer request） |
