Reliable high RF shielding up to 12GHz
Pneumatic operation
Easily customizable to meet various test needs
EMI filters on all Data and Power lines
Dual pressure control and Lid down sensor for safety
+86 18038170771Application

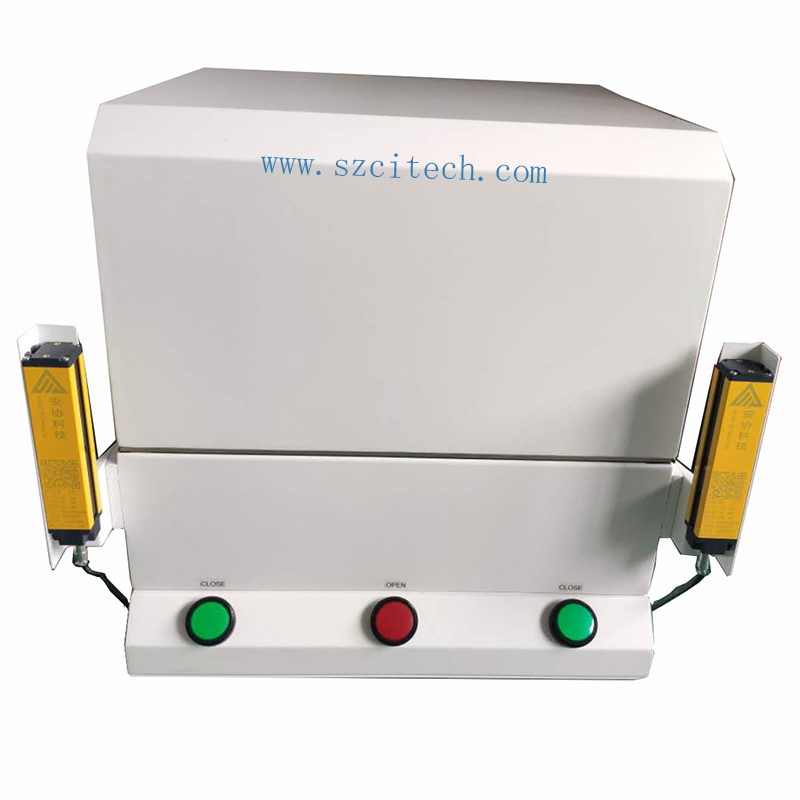

ST-RF003 RF Shielded Box provides RF isolation and signal connections necessary for Mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D, service QC and manufacturing Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, ZigBee, RFID, TD-SCDMA, etc.
u Reliable high RF shielding up to 12GHz
u Pneumatic operation
u Easily customize to meet various test needs
u EMI filters on all Data and Power lines
u Dual pressure control and Lid down sensor for safety
Specification
Inner Dimension | (D)450 *(W)430*(H)400 mm |
Outer Dimension | (D)510 *(W)510 *(H)510mm |
Shielding Isolation | 800Mhz-8.5G≥70dB |
Shielding Material | Microwave Absorber |
Material | metal plate |
Surface Color | Grey white ( According to the customer request custom color) |
I/O Connectors | SMA-SMA*10, ,USB*1, RJ45*8，∮6 air inlet *2，AC220 *1（Can be customized according to needs） |
