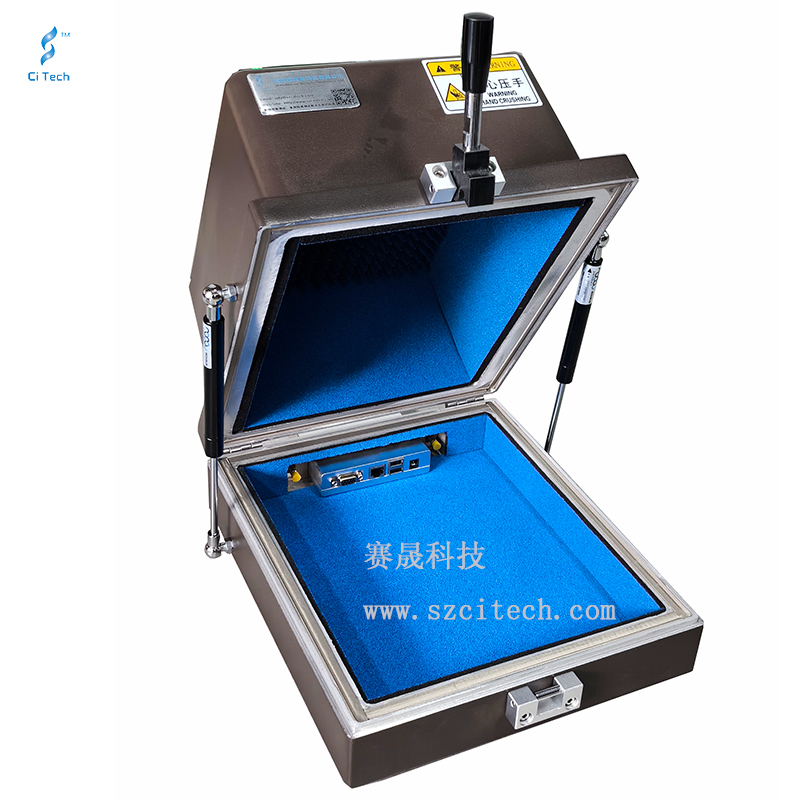

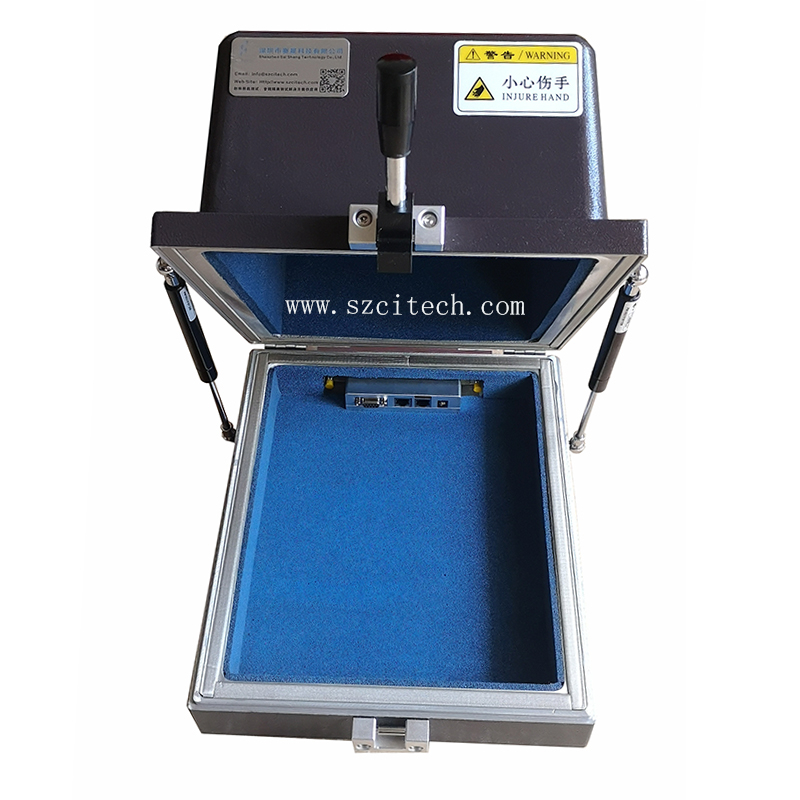

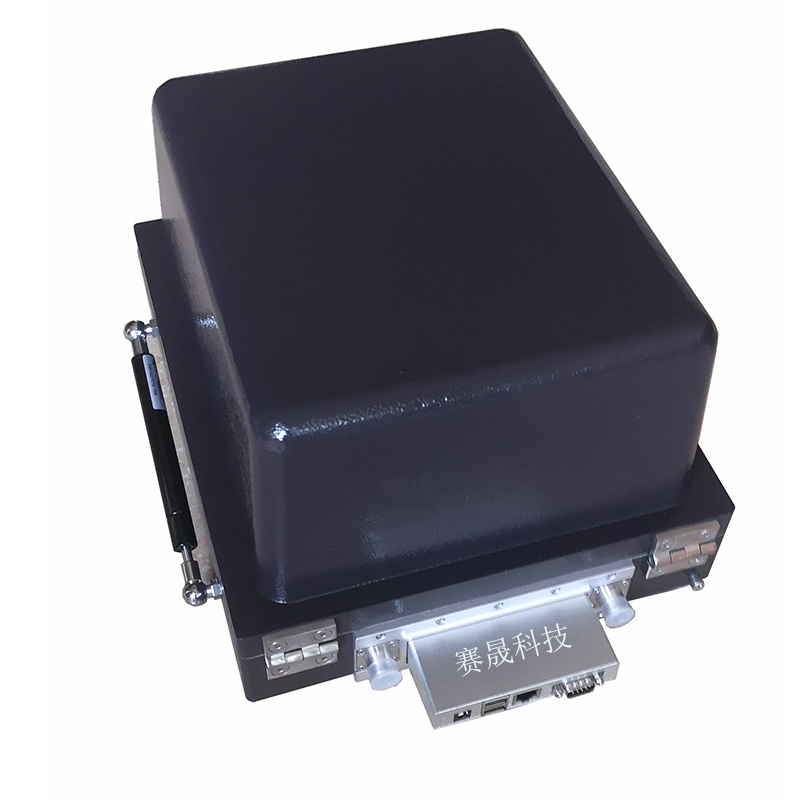

Sub-6GHz & UWB Manual Shield Box/rf isolation box
ST-S001B shares the same design and consistent shielding up to 12 GHz as the ST-S001B but it offers a slightly larger size. The increase in interior working space is suitable for those looking to test bigger devices such as tablets and laptops without sacrificing shielding effectiveness. In addition to shielding traditional 2.5 GHz technologies like WIFI, Zigbee, and Bluetooth, this shield box supports a range of up to 12 GHz to enable testing on forward-looking technologies such as 5G, UWB, and WIFI 6E variants.
+86 18038170771Application

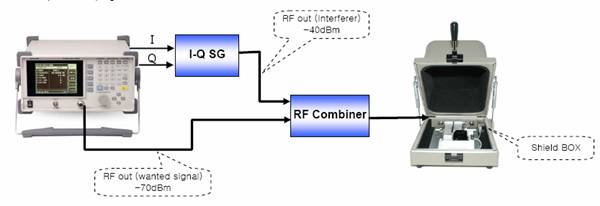

ST-S001B RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
Features
Reliable high RF shielding up to 12GHz
Manual operation
Easily customizable to meet various test needs
Shock absorbers on lid
Specification
Inner Dimension | （L）310 x（W）250 x（H）160mm |
Outer Dimension | （L）500 x（W）355 x（H）225mm |
Shielding Isolation | 800MHz~6GHz>70dB |
Shielding Material | Microwave Absorber |
Material | Aluminum |
Weight | approx.12.5kg |
Surface Color | coffee |
I/O Connectors | N-SMA*2 |
RS232*1 | |
DC*1 | |
USB*2 RJ45*1 |
